Toyota Landcruiser Land Cruiser LX 100 / Lexus LX470 (2002-2007)

Load image into Gallery viewer, Toyota Landcruiser Land Cruiser LX 100 / Lexus LX470 (2002-2007)

Toyota Landcruiser Land Cruiser LX 100 / Lexus LX470 (2002-2007)

Vendor: T'EYES
Regular price: €255,39
Sale price: €255,39
Regular price
Unit price: per

GST (Australia Only) Shipping calculated at checkout.

Memory Size

Quantity

Quantity must be 1 or more

Brand Name: TEyes
Din: One Din

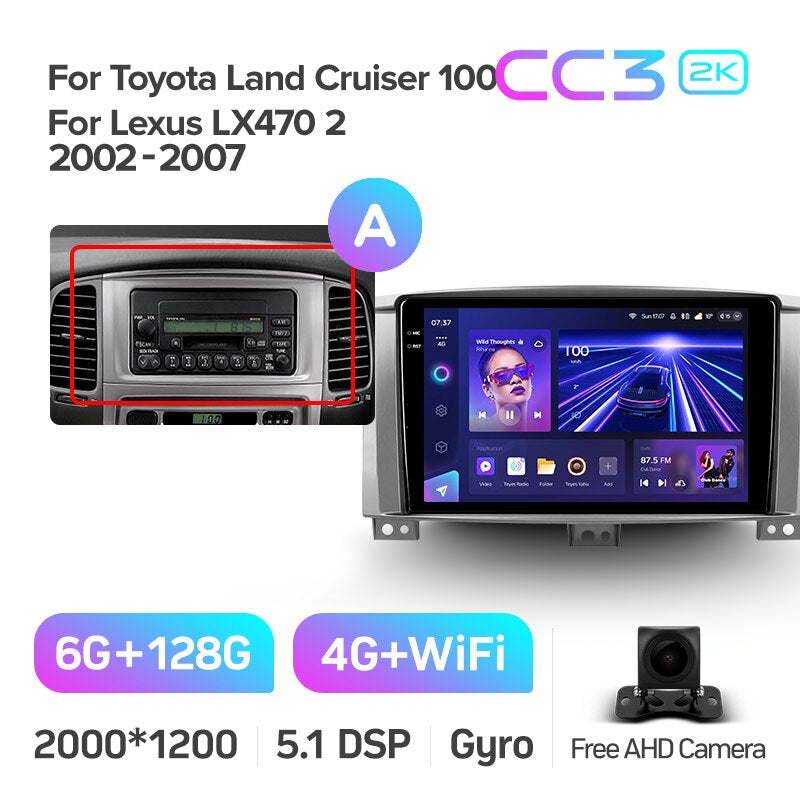

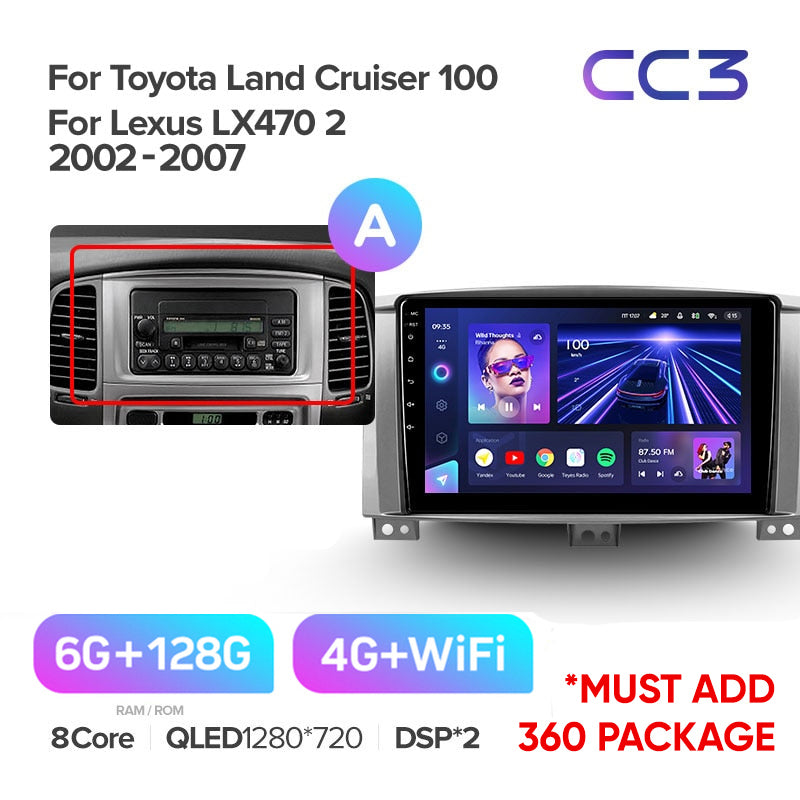

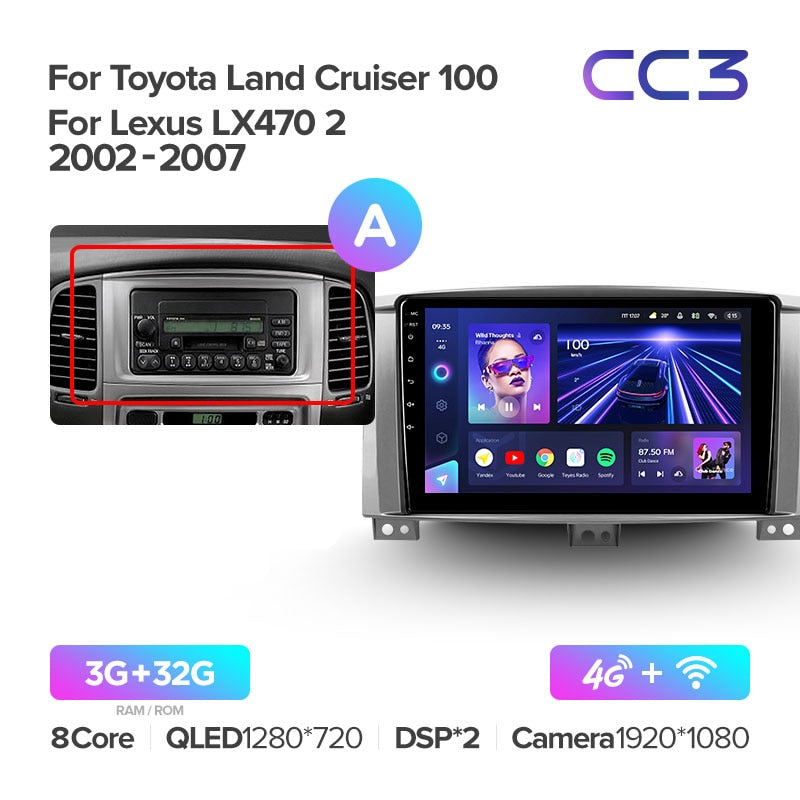

Display Size: OPTION A 9"

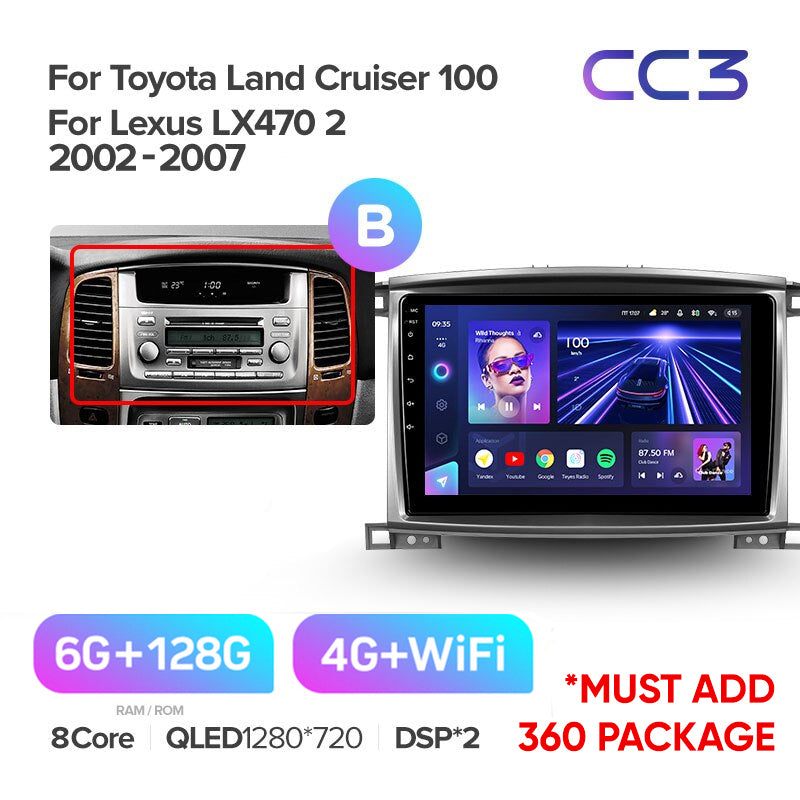

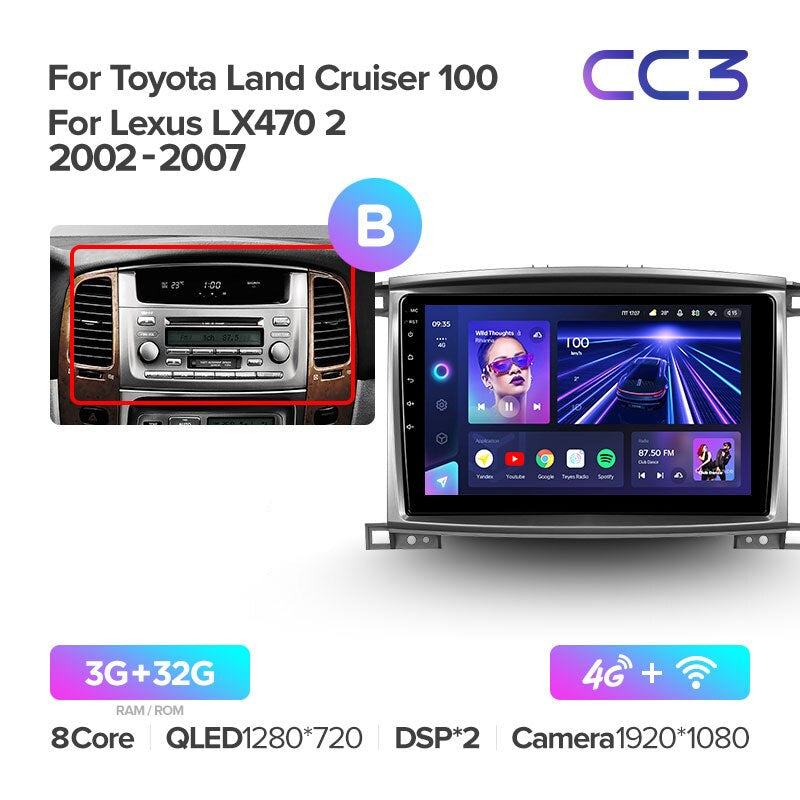

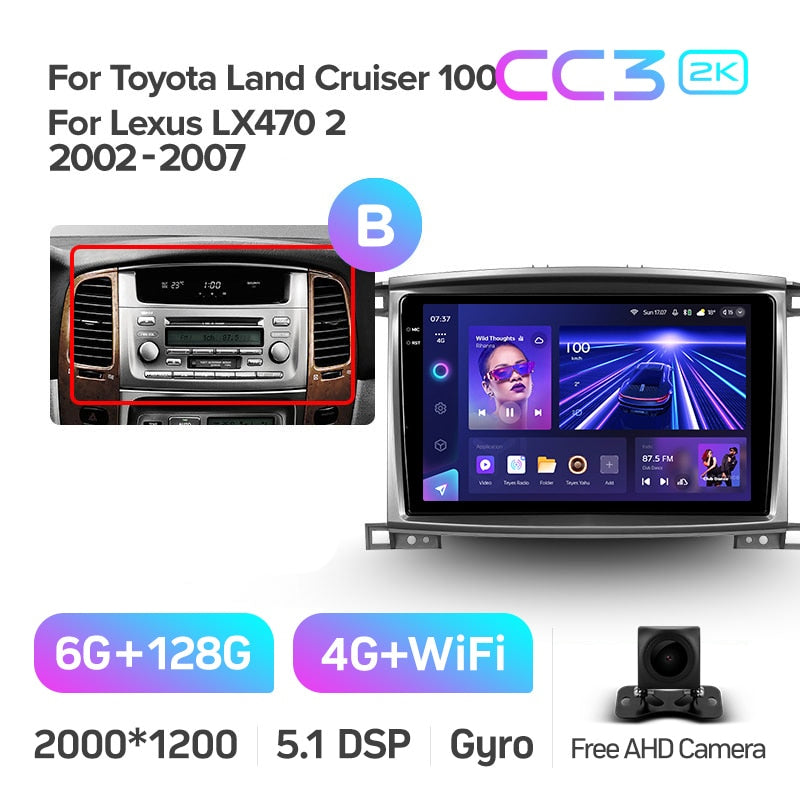

Display Size: OPTION B & C 10.2"

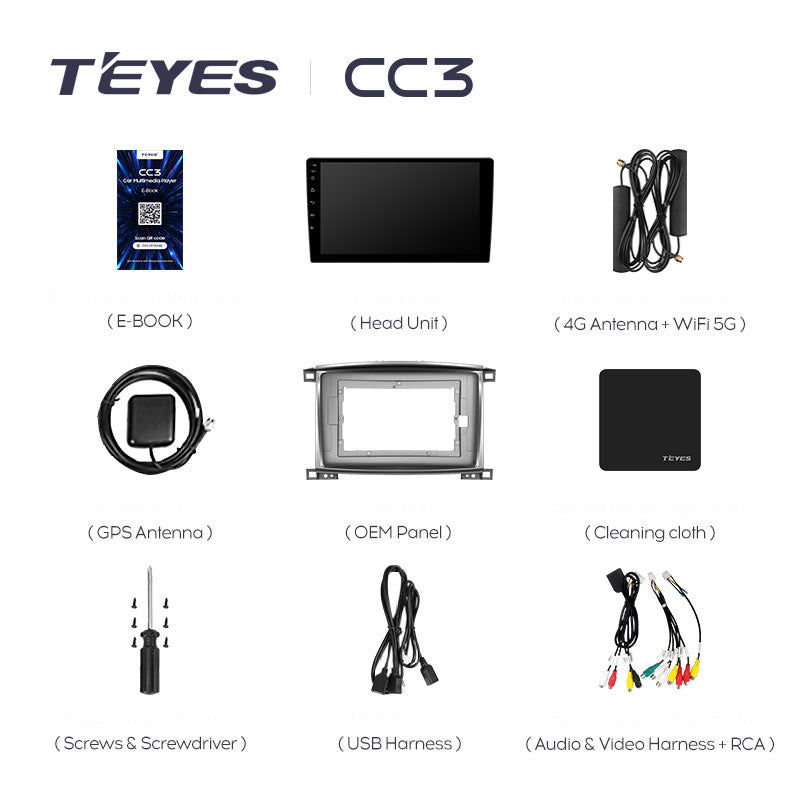

Accessories: Standard cables
Processor Type: 8 core
Chipset: 2xA75 + 6xA55
Category: ARM
Digital Media Format: Mp3,MP4,WMA,JPEG
Is touch screen: YES
Special Feature: Wifi Function,Support Steering Wheel Control,Support 3G Network,Support 4G Network
Built-in CD player: NO
Certification: CE,EAC
Processor Speed: 8 core
Tuner Type: FM
Warranty: 1
Built-in Screen: YES
Preset Station: Yes
Operating System: Android
Built-in DVD Player: NO

NOTE: Diesel versions using OBD-M protocols are not compatible with OBDII

NOTE: Does not support factory reverse camera

NOTE: If using A HARNESS, leave the 2 wire black plug unplugged to avoid conflicts with the system.

NOTE: If your Accessories is a 10Amp fuse you may need to upgrade it as the CC3 uses a 15Amp fuse on board

NOTE: We had 2 reported instances of ground line pin being misconfigured that was preventing the unit turning on.

NOTE: Some instances of amplifiers are causing a "hum" sound in the system . This is a work in progress to determine why, please be aware. You may have to wire the RCA 5.1 to the speaker outputs instead. Do not purchase if you do not agree.

NOTE: The manual volume dial below the dash will only mute when pushed and will not control volume up or down. The steering control volume buttons do work though.

NOTE: If A/C controls dont work after being setup, please update all 4 APKs in the TEYES app

NOTE: If the height of your A frame type is 135mm, please see the modification needed further below to make it sit flush.

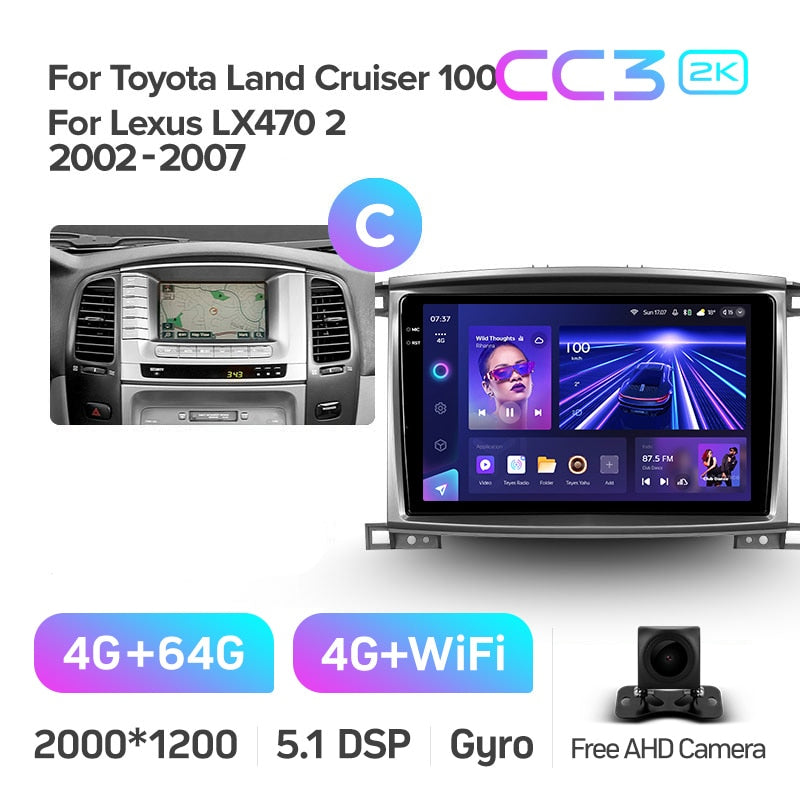

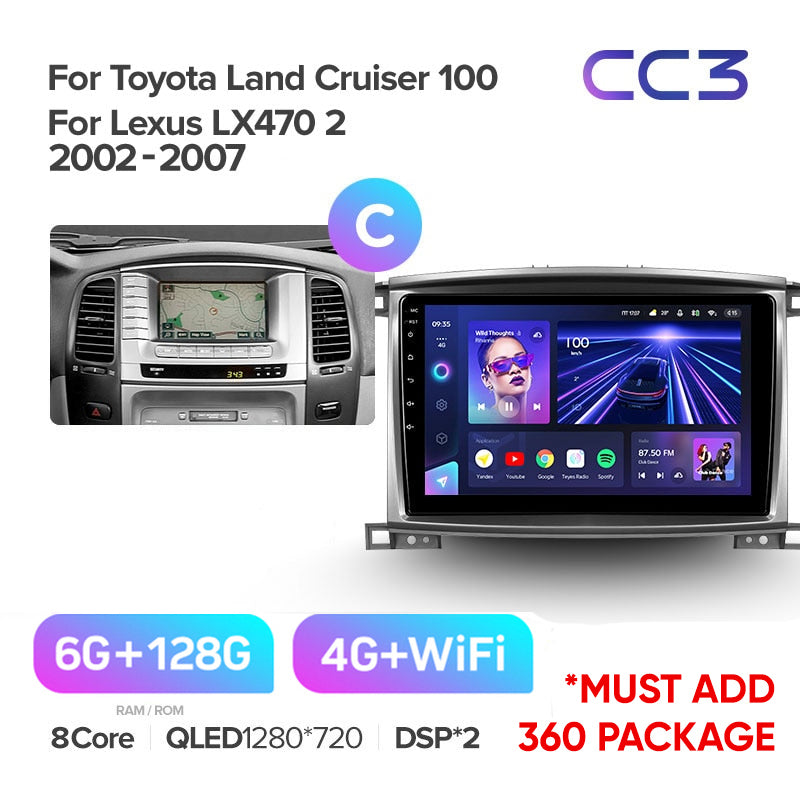

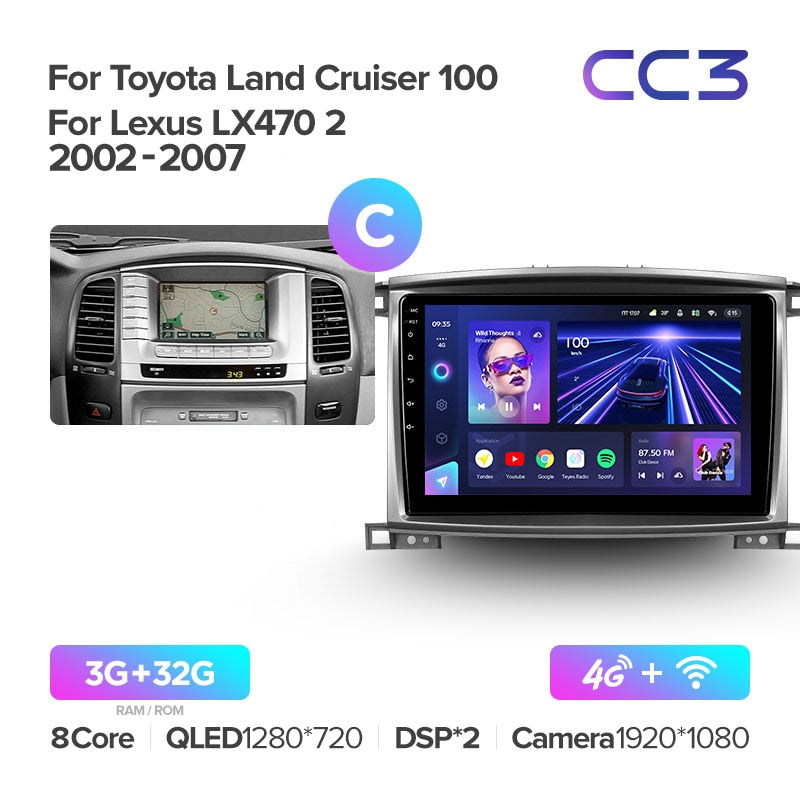

NOTE: This head unit for C is also compatible

best lexus lx470 head unit upgrade

NOTE: If you have a gap form after install, you must cut the plastic bracket off for a flush fit.

NOTE: The below model requires Option B or C frame, however you must buy this toyota harness (here)

NOTE: If with C model you have no sound in the rear, check this harness and make the modification as per below by shifting 2 wires pointed out by the arrows to the 2 slots on the opposite side.

MAJOR Android Auto Connectivity Problem

I installed the CC3 4k in my 2003 Lexus LX470 and am really not happy. The climate control works fine but there are SERIOUS issues with connectivity and audio streaming.

I'm on a OnePlus 8T running Android 14. At least half of the times I start the vehicle the Car Link 2.0/Android Auto will not connect. Sometimes the 'Connecting' animation will run endlessly, and sometimes it will connect and just show a completely blank screen and become unresponsive. I have tried all types of steps to get it to connect (hitting the 'home' button in the Car Link and reopening, restarting bluetooth on the phone, making sure the phone is awake and on the home screen before opening Car Link on the CC3) and nothing seems to work with any consistency. The only solution I have found is to drill down into the CC3 settings to force stop the Link software and restart it only to have the same random chance of establishing a connection.

This is extremely frustrating for the amount of money that I paid and the amount of time I spent installing this unit.

At this point I would just prefer to use the built-in bluetooth app to listen to my music, but that app has a horrible glitch that makes a terrible electric buzz whenever the phone receives or sends a text message and disconnects bluetooth (see attached video).

So I am stuck using the Android Auto with its completely random connection probability. Unfortunately now THAT app has started to disconnect from audio when a text message is received, requiring a disconnect/reconnect of the Android Auto and another roll of the dice on establishing the connection.

I'm really at a loss of what to do. I've put a lot of money into the unit and a lot of time installing and configuring it, but if I can't rely on it to connect correctly or to at least let me listen to music over bluetooth I would like a refund so I can look at other options in the market.

Work in progress

This has potential, but there are still many issues with the install and operation. Manufacture provides limited support. How to set up and use info is limited. Most of the credit for resolving issues goes to the ih8mud.com forum. Still working to resolve the continuous background hissing issue with the 2004 Land Cruiser

Works Brilliantly

Has changed the driving experience.

All right, this is not the first time I order, thanks to the seller!

I recommend it, super!
