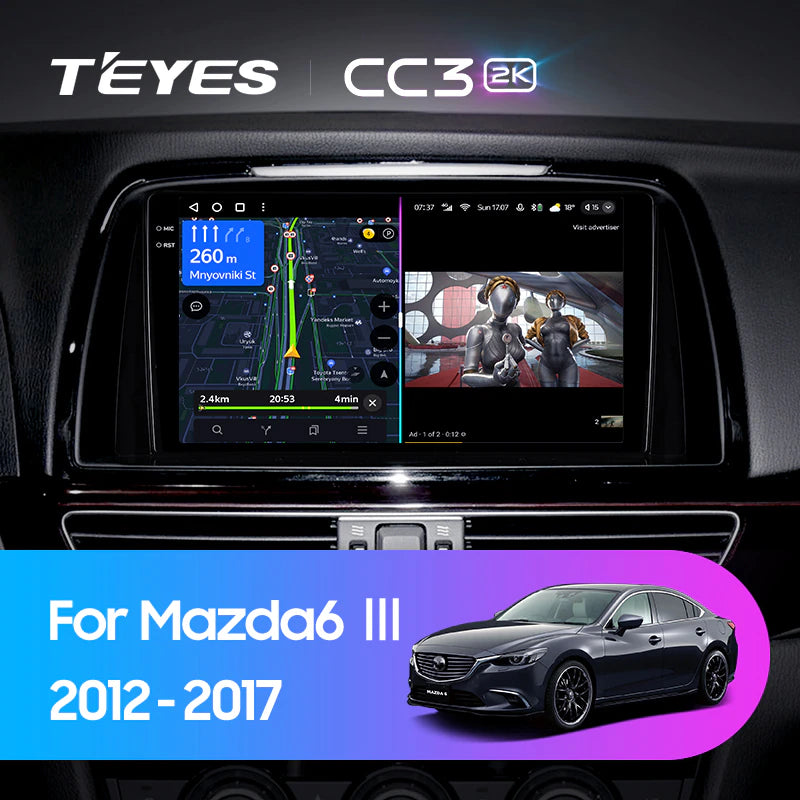

Mazda 6 3 GL GJ (2012-2017)

• Brand Name: TEyes
• Din: One Din
• Display Size: 9"
• Digital Media Format: Mp3,MP4,WMA,JPEG
• Special Feature: Wifi Function,Support Steering Wheel Control,Support 3G Network,Support 4G Network
• Certification: CE,EAC
• Operating System: Android

NOTE: After market interior LEDs can cause screen flicker and dimming issues. Please especially check for LED in the globe box.

NOTE: Supports Bose audio, if you experience hissing please see here

NOTE: Some buzzing has been attributed to the OEM USB Mazda retention cable. Try to disconnect to test.

NOTE: If you have amplifier, connect the Blue AMP and Blue AMP-C wires together to engage the amplifier or you will not get sound. Make sure in the sound settings that AMP is selected to the ON position.

If this does not output 12VDC on BLUE AMP-C wire, Connect the BLUE AMP cable to G3 accessories instead.

Mazda B option 24Pin plug pinout (here)

NOTE: Supports center controller

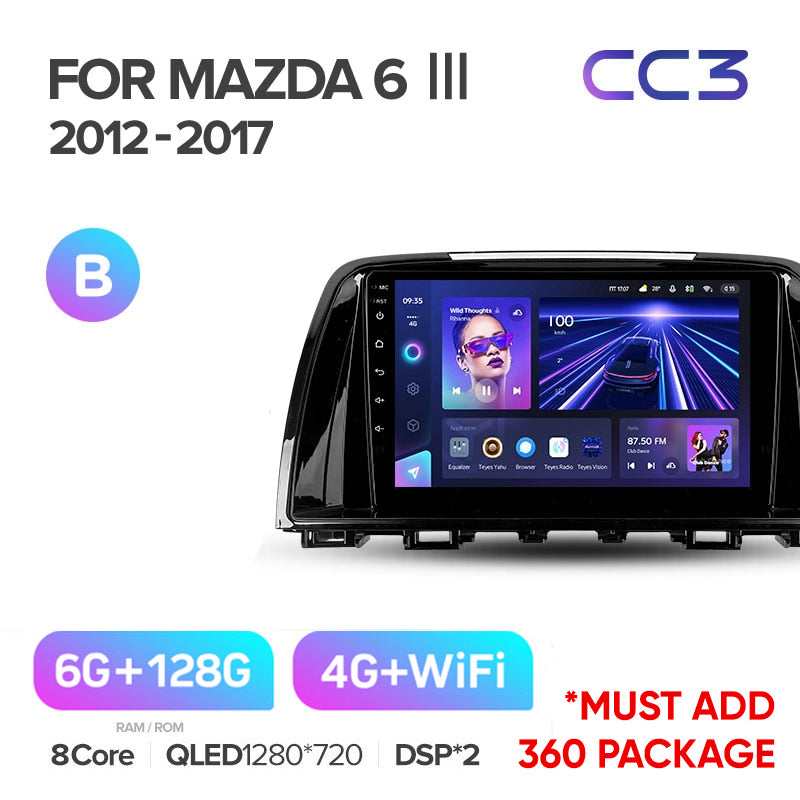

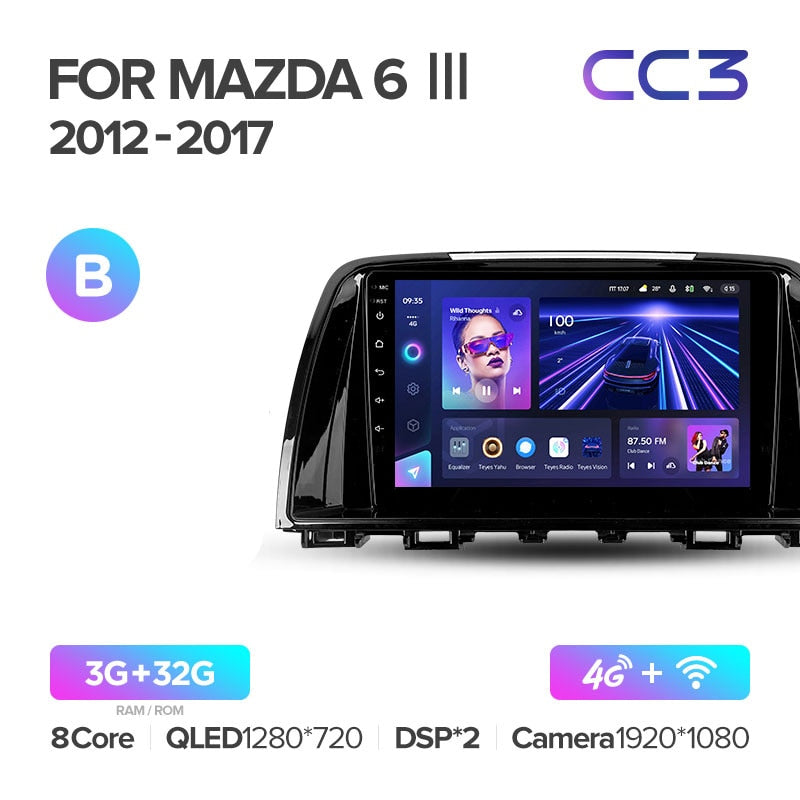

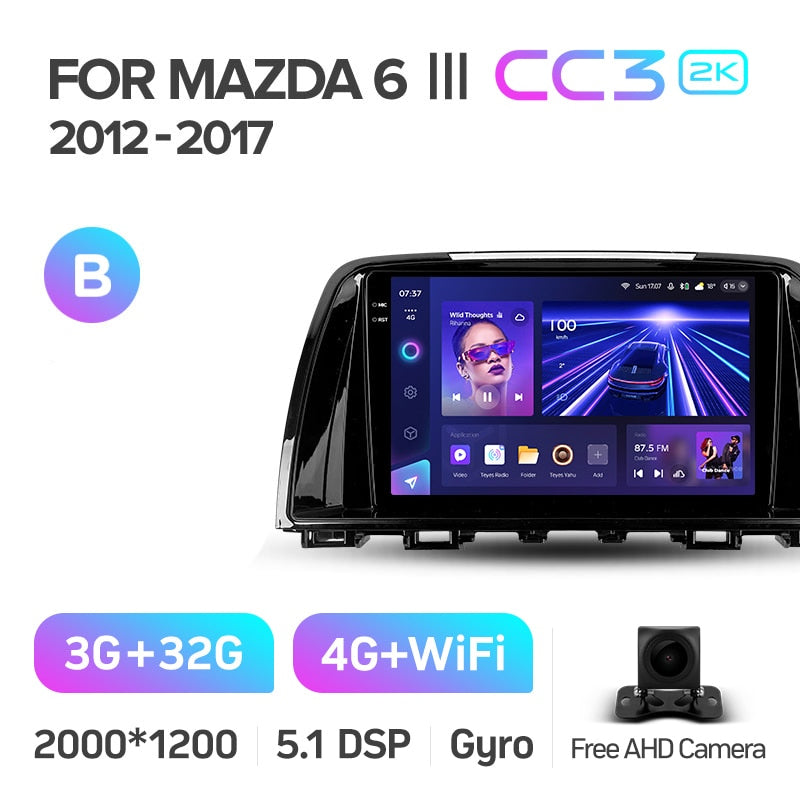

NOTE: The below head unit is supported and should select option B

For this head unit uses LK 220418 -XP harness

NOTE: For this head unit uses LK 220418 -XP harness HOWEVER the steering controls are not supported. You will need to try make your own modification to get them to work. We do not have a solution for this yet
